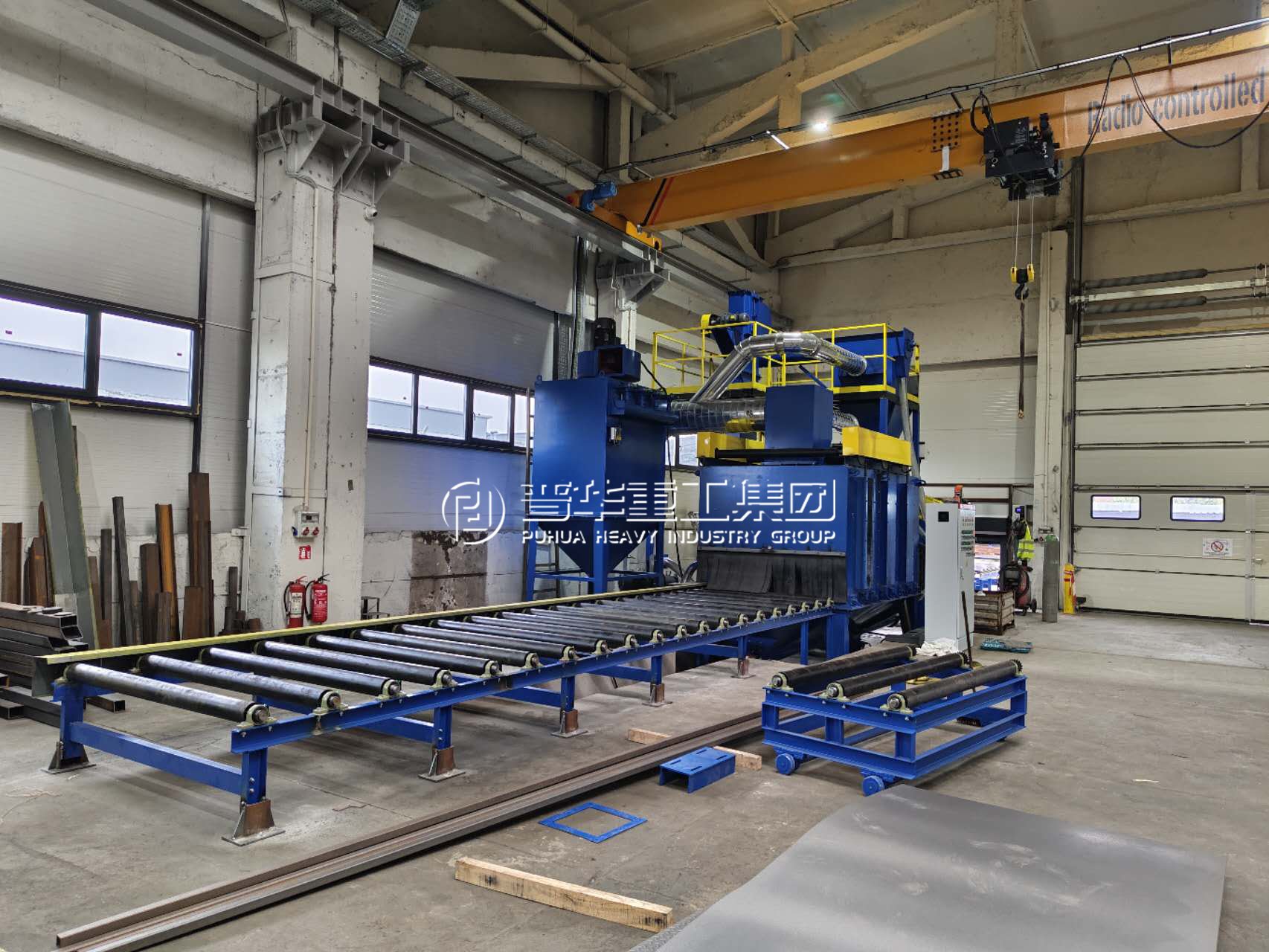

The Q69 Series utilizes a roller conveyor system and consists of a pretreatment system, a multi-angle shot blasting unit, a shot blasting circulation system, and a dust removal system. Equipped with multiple high-efficiency shot blasters, the equipment ensures a surface cleanliness level of Sa2.5 and a surface roughness range of 40-70 microns through precisely controlled shot blasting angles and shot flow. Its unique pitless design simplifies installation and significantly reduces construction costs.
The equipment's working width can be customized according to customer needs. Standard models range from 1.5 meters to 4 meters, and its processing capacity extends from 6 mm to 200 mm, meeting the production needs of workpieces of varying specifications. The conveying system utilizes variable frequency speed control, with an adjustable operating speed between 0.5 and 4 meters per minute, ensuring optimal processing results for a wide range of materials.
In practical applications, the Q69 series demonstrates significant advantages. Its centrifugal shot blaster features a dual-disc structure, capable of blasting up to 600 kg per minute, increasing processing efficiency by over 30% compared to conventional equipment. The unique curtain-type shot blaster ensures a sorting efficiency exceeding 99%, ensuring the purity of the circulating shot and significantly reducing equipment wear.
The dust removal system utilizes a pulsed backflush cartridge filter with a filtration accuracy of 0.3 microns. Emission concentrations are strictly controlled below 15 mg/m³, fully complying with national environmental standards. The intelligent control system, equipped with a human-machine interface, can store multiple workpiece processing parameters, enabling one-touch operation and significantly reducing manual operation.
Wide Range of Applications
This equipment is particularly suitable for the following industries:
Steel Structure Manufacturing: Surface pretreatment of H-beams, box girders, and other structural components
Bridge Construction: Rust removal and roughening of bridge steel plates and steel box girders
Shipbuilding and Maintenance: Surface cleaning of hull sections and deck plates
Wind Turbine Equipment Manufacturing: Surface treatment of large components such as towers and flanges
Construction Machinery Manufacturing: Cleaning of structural components such as crane booms and excavator arms
Technical Innovation Highlights
The Q69 series utilizes several patented technologies, including an adaptive shot blasting control system that automatically adjusts the shot blasting intensity based on the workpiece shape; an intelligent monitoring system that monitors the equipment's operating status in real time and automatically indicates maintenance intervals; and a modular design that reduces the replacement time of key components by over 40%, significantly reducing downtime.
The equipment's guard plate is cast from a high-chromium alloy and has a service life of over 8,000 operating hours. The sealing system utilizes a multi-layer labyrinthine structure to effectively prevent shot blasting leakage, ensuring a clean working environment. The energy recovery system reduces energy consumption by 25% compared to traditional models.
Qingdao Puhua Heavy Industry has established a comprehensive service system, providing comprehensive technical support from equipment selection and site planning to installation and commissioning. The company's dedicated technical team can provide customized solutions tailored to customers' specific needs. A global spare parts supply network ensures a 24-hour response time, providing timely technical support and spare parts services.
The Q69 series steel plate and profile shot blasting machine, with its stable performance, efficient processing, and reliable quality, has become the preferred equipment for numerous large-scale engineering projects and manufacturing companies. Its superior processing results and stable operation help customers significantly improve product quality, reduce production costs, and enhance market competitiveness.
Through continuous technological innovation and a comprehensive service system, Qingdao Puhua Heavy Industry is committed to providing customers around the world with the highest-quality surface treatment solutions, helping businesses achieve high-quality and sustainable development.
