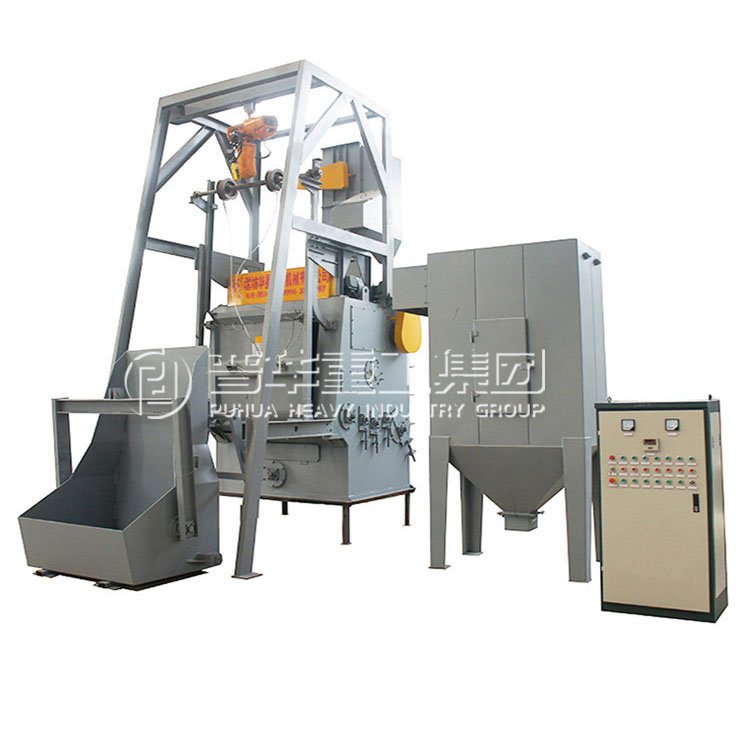

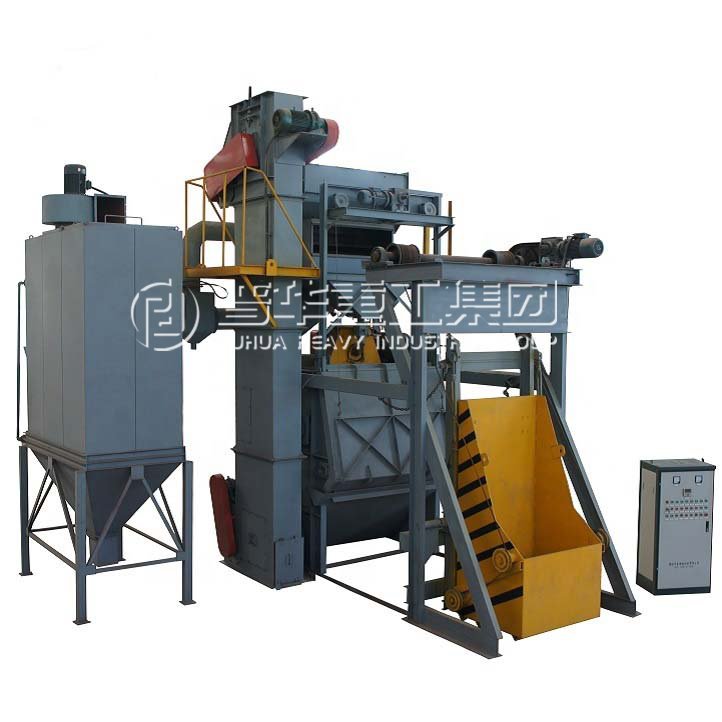

The equipment features a fully enclosed structure design, mainly including a tracked conveyor system, shot blasting chamber, shot circulation device, dust removal system, and electrical control system. The track is made of high-strength wear-resistant steel chain plates and equipped with an automatic tension adjustment device to ensure smooth and stable conveying. The shot blasting chamber is equipped with multiple high-efficiency shot blasters, and optimized arrangement achieves uniform cleaning of all surfaces of the workpiece.
The Q32 series equipment performs excellently in processing small and medium-sized workpieces. Its continuous conveying design ensures smooth production operations, and the equipment's processing efficiency is significantly improved compared to traditional methods. By adjusting the shot blaster operating parameters and track running speed, different material and process requirements can be met. The surface quality of the workpieces treated by the equipment is stable, and the cleanliness meets industry standards.
This equipment is suitable for the following industries:
Foundry Industry: Surface cleaning of various small and medium-sized castings
Forging Industry: Oxide scale removal from forgings
Machining: Surface cleaning of machined parts
Automotive Manufacturing: Surface pretreatment of parts
Hardware Products: Surface treatment of various metal products
The equipment features a compact design, small footprint, and requires no special foundation treatment. Standard models offer various processing capacities from 200 kg to 1000 kg per batch, allowing selection of the appropriate model based on production needs. The conveyor speed is infinitely adjustable to adapt to different process requirements. The dust removal system operates stably, ensuring a clean working environment.
The equipment is easy to operate and maintain. The crawler conveyor system operates smoothly, continuously turning the workpiece during cleaning to ensure thorough treatment of all surfaces. The shot blasting circulation system has high separation efficiency, effectively guaranteeing shot blasting quality. The control system is simple and intuitive to set up; operators can master it after basic training.
The equipment is equipped with comprehensive safety protection devices, including an electrical safety system, mechanical protection devices, and an operation monitoring system. All transmission parts are equipped with protective covers, and the equipment doors are equipped with safety interlocks to ensure operational safety. The dust removal system is equipped with fire prevention devices to eliminate safety hazards.
The equipment adopts a modular design, making maintenance and upkeep simple and easy. Routine maintenance mainly includes checking track tension, inspecting vulnerable parts of the shot blasting machine, and cleaning the dust removal system. Major components adopt a standardized design, making replacement convenient and effectively reducing maintenance costs and time.
The Q32 series equipment features low energy consumption, effectively controlling operating costs while ensuring processing quality. The equipment is highly adaptable, and operating parameters can be flexibly adjusted according to production needs. Its continuous operation capability makes the equipment particularly suitable for mass production environments.
Qingdao Puhua Heavy Industry provides comprehensive technical services, including equipment selection consultation, installation and commissioning guidance, and operation and maintenance training. The company has established a complete after-sales service system, providing timely technical support and spare parts supply to ensure long-term stable operation of the equipment.
This series of equipment, with its reliable performance and reasonable price, is widely used in small and medium-sized foundries and machining plants. The equipment operates stably and has low maintenance costs, creating significant economic benefits for users.
As the manufacturing industry continues to demand higher surface treatment quality, tracked shot blasting machines will continue to play a vital role. Qingdao Puhua Heavy Industry will continuously optimize product design and improve equipment performance to provide customers with better products and services.
