A shot blasting machine is an industrial device that mechanically propels metal shot at high speed onto the surface of a workpiece. It utilizes centrifugal force to throw a large amount of steel shot at the workpiece, removing surface oxide scale, rust, welding slag, and other impurities through physical impact, while simultaneously creating a uniform rough surface, providing an ideal adhesion base for subsequent coating processes. This surface treatment method not only improves the appearance quality of the workpiece but also enhances its corrosion resistance and service life.
Depending on the shape and size of different workpieces and production needs, shot blasting machines have developed various structural forms. Common types include hook type, drum type, tracked type, and rotary table type. Tracked shot blasting machines are particularly suitable for processing small and medium-sized castings, forgings, and standard parts, featuring continuous operation, large throughput, and ease of operation.

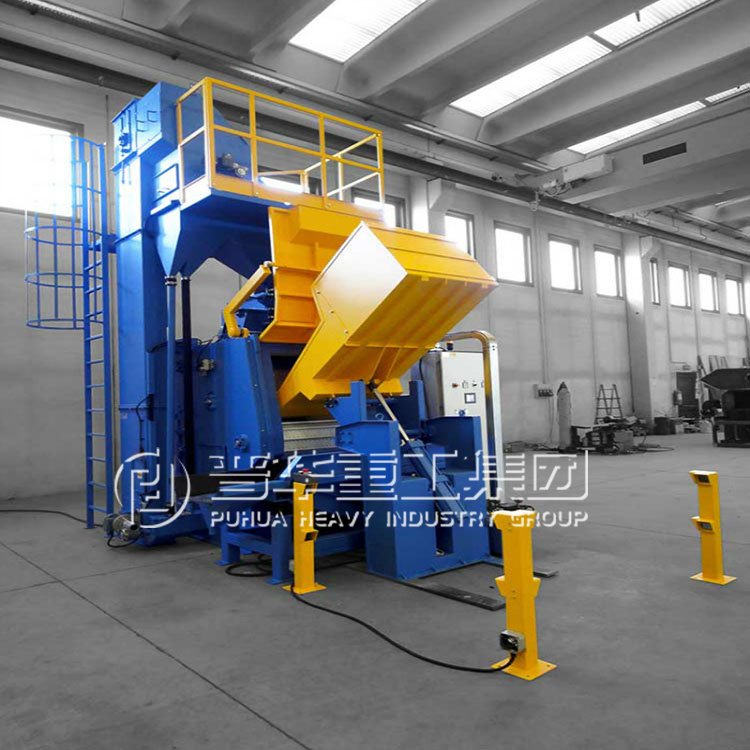

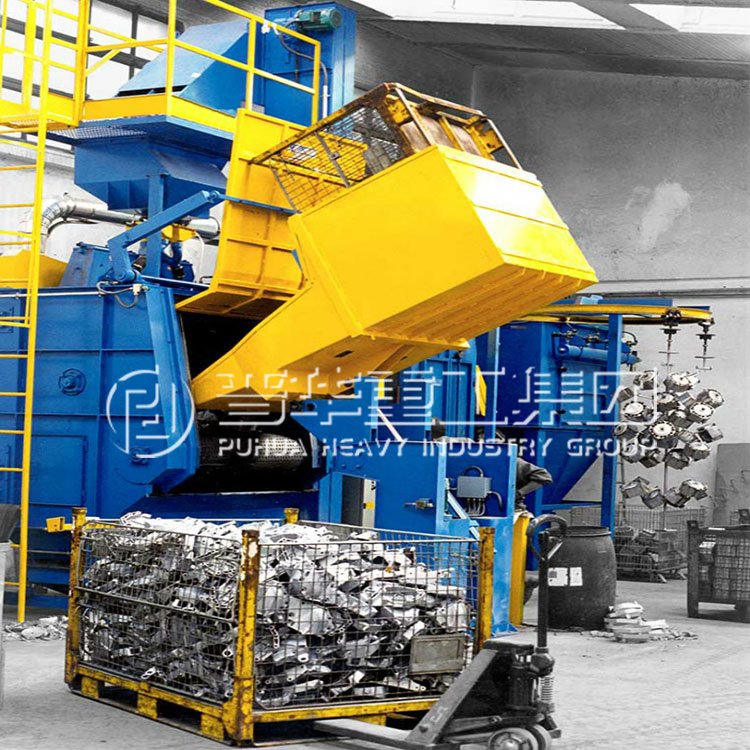

The Q32 series crawler-type shot blasting machine features a continuous conveying design, with workpieces constantly rotating during the cleaning process to ensure uniform treatment of all surfaces. The equipment has a compact structure, requires no special foundation, and is easy to install and debug. Compared to traditional methods, the Q32 series improves work efficiency by over 30% while maintaining consistent processing quality.
The equipment is equipped with multiple high-efficiency shot blasters, projecting the workpiece from different angles. The shot blasting chamber uses high-chromium wear-resistant plates to ensure long-term stable operation. The shot circulation system includes a magnetic separator and a vibrating screen, effectively separating impurities and ensuring shot blasting quality. The surface cleanliness of the treated workpieces can reach Sa2.5 standard.
Foundry industry: Surface cleaning and desanding of various castings
Forging industry: Oxide scale removal from forgings
Machining: Pre-treatment and post-treatment of workpieces
Automotive manufacturing: Surface pre-treatment of parts
Hardware products: Surface treatment of standard parts and fasteners
The equipment adopts a modular design and is available in various sizes. The standard model has a processing capacity from 200 kg to 1000 kg per pass, with a typical single workpiece weight not exceeding 50 kg. The equipment width ranges from 600 mm to 1200 mm, accommodating the processing needs of workpieces of different sizes.
The equipment is equipped with a user-friendly control system with a clear and concise operating interface. Simply set the processing time and shot blasting intensity, and the equipment will automatically complete the entire process. The track speed can be steplessly adjusted between 0.5 m/min and 4 m/min to adapt to different materials and process requirements.
Regularly check track tension and adjust promptly.
Clean the dust removal system filter cartridges to maintain good filtration efficiency.
Check the wear of vulnerable parts of the shot blasting machine and replace them promptly.
Keep the shot circulation system unobstructed and replenish with new shot as needed.
Regularly lubricate all transmission parts.
The main components of the equipment adopt a standardized design for easy replacement. Under normal circumstances, daily maintenance time should not exceed thirty minutes.
Professional engineers provide installation and commissioning guidance.
Operation and maintenance training ensures correct use.
24-hour technical consultation support.
Fast spare parts supply service.
Regular follow-up visits and equipment inspections.
The company has service outlets in major industrial areas nationwide to ensure timely response to customer needs. A dedicated file is established for each piece of equipment to record usage and maintenance information.
The shot blasting chamber lining is made of high-chromium alloy, ensuring a long service life.
The transmission system uses bearings from well-known brands.
Electrical components meet industrial-grade standards.
The overall structure undergoes anti-corrosion treatment.
Under normal use and maintenance conditions, the main structure of the equipment can be used for more than ten years. Major wear parts are all designed with standardized specifications, resulting in low replacement costs.
Workpiece size and weight range
Production batch size and operating time
Workshop space and installation conditions
Power supply availability
Environmental emission requirements
Qingdao Puhua Heavy Industry's technical personnel can recommend the most suitable equipment model and configuration scheme based on the customer's specific situation. Free site planning and process design consultation are provided.
Reasonable equipment price and short investment payback period
Low energy consumption and low maintenance costs
Good processing effect, reducing rework rate
High degree of automation, saving labor costs
Long service life and low overall operating cost
Compared with similar products, the Q32 series has significant advantages in energy consumption control, ease of operation, and maintenance costs.
The Q32 series crawler shot blasting machine, with its stable performance, simple operation, and comprehensive service, has become an ideal choice for surface treatment of small and medium-sized workpieces. Qingdao Puhua Heavy Industry will continue to dedicate itself to product improvement and technological innovation, providing customers with better products and services, and helping enterprises improve product quality and production efficiency.
