In the field of surface treatment, shot blasting machines are among the most widely used equipment. However, faced with various types such as crawler type, hook type, roller conveyor type, rotary table type, and mesh belt type, many purchasers are often confused: which one is suitable for their production needs? This article will start from the characteristics of the workpiece to provide you with a clear selection process and help you make a more informed decision.
I. Clarify Three Core Questions Before Selection
Before considering the type of equipment, it is recommended to answer the following three questions:
1. What is the workpiece?
- Dimensions: What are the length, width, and height of the workpiece? Does it require processing of internal cavities or deep holes?
- Shape: Is it a simple small, loose part, or a complex large structural component?
- Weight: What is the maximum weight of a single piece?
- Material: Cast iron, cast steel, aluminum alloy, stainless steel, or others?
2. What are the process objectives?
- Surface Cleaning: Removes oxide scale, rust, welding slag, and old paint.
- Surface Strengthening: Improves the fatigue strength of the workpiece.
- Decorative Treatment: Achieves a uniform matte or metallic finish.
3. What are the production requirements?
- Batch Size: How many pieces can be processed at a time? What is the daily throughput?
- Automation Level: Is it necessary to connect to upstream and downstream processes?
- Site Conditions: Is there space for a pit installation? What are the height and area of the factory building?
II. Characteristics and Applicable Scenarios of Various Shot Blasting Machines
Crawler-Type Shot Blasting Machine
Working Principle: The workpiece is placed in the crawler cleaning chamber. The crawler rolls, causing the workpiece to tumble continuously and be blasted by the shot blaster.
Suitable Workpieces:
- Small, high-volume castings, forgings, and stampings that are not susceptible to minor impacts
- Small workpieces with a typical unit weight within a certain range
- Typical workpieces: screws, nuts, small hardware tools, brake discs, small castings
Core Advantages:
- High batch processing efficiency; can process a large number of workpieces at once
- Uniform processing; all surfaces are cleaned during tumbling
- High cost-effectiveness; small footprint
Applicable Industries: Foundries, automotive parts, hardware products

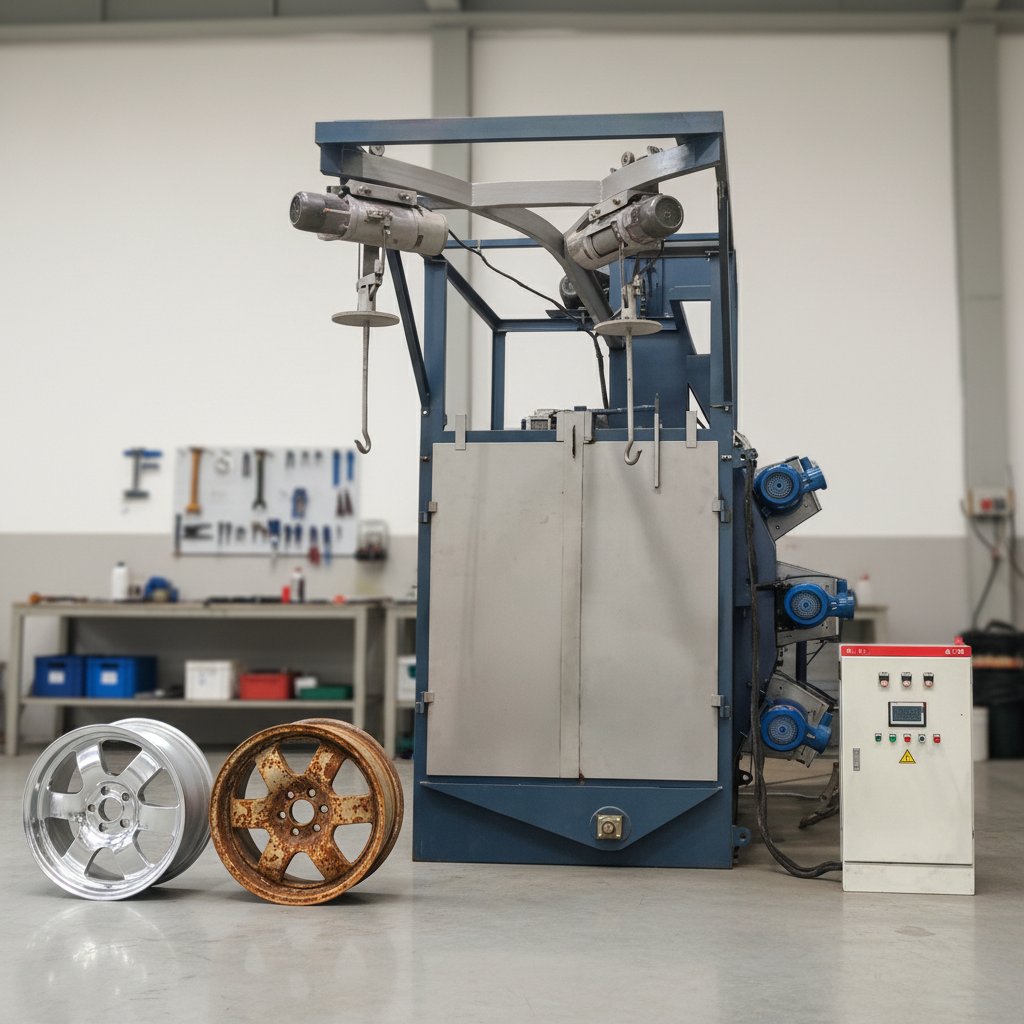

Hook-type Shot Blasting Machine
Working Principle: The workpiece is suspended on a hook, enters the cleaning chamber, and rotates at a uniform speed, receiving all-around shot blasting from the shot blaster.
Suitable Workpieces:
- Large and medium-sized workpieces with complex structures and susceptible to impact damage
- Workpieces requiring internal cavities or deep holes
- Typical workpieces: Engine blocks, gearbox housings, gears, crankshafts, wheel hubs, large castings
Core Advantages:
- Excellent processing effect, no blind spots
- Independent workpiece suspension, no risk of impact
- High flexibility, capable of handling workpieces of different shapes and sizes
- Suitable for multi-variety, small-batch production
Applicable Industries: Automobile manufacturing, construction machinery, wind power equipment, large motors
Roller Conveyor Shot Blasting Machine
Working Principle: The workpiece is carried by a roller conveyor system, passing through the shot blasting cleaning area at a uniform speed, and receiving continuous shot blasting from the shot blasters.
Suitable Workpieces:
- Long plates, profiles, and pipes
- Steel structural components requiring continuous batch processing
- Typical Workpieces: Steel plates, H-beams, I-beams, steel pipes, welded structural components
Core Advantages:
- Highly efficient assembly line operation
- Can be integrated with other processes to form an automated production line
- Excellent consistency in processing results
Applicable Industries: Steel structure construction, bridge manufacturing, ship pretreatment, steel plate processing centers
Wire Mesh Belt Shot Blasting Machine
Working Principle: Workpieces are laid flat on a metal wire mesh belt and pass through the shot blasting area at a uniform speed, receiving shot blasting from the shot blaster.
Suitable Workpieces:
- Flat, thin-walled, easily deformable, and impact-sensitive workpieces
- Sheet-shaped parts requiring double-sided cleaning
- Typical workpieces: Brake pads, clutch plates, spring plates, stamped parts, electronic components, tableware
Core Advantages:
- Smooth processing, no violent tumbling, effectively preventing deformation
- Automated continuous production, high efficiency
- Easily integrates with upstream and downstream processes
Applicable Industries: Automotive parts, electronic components, hardware products, tableware and kitchenware
Rotary Table Shot Blasting Machine
Working Principle: The workpiece is fixed on a rotating worktable and receives shot blasting from above or from the side.
Suitable Workpieces:
- Disc-shaped, ring-shaped, and flat workpieces
- Workpieces requiring single-sided or specific area processing
- Typical workpieces: Gears, brake discs, flywheels, flanges
Core Advantages:
- Workpiece fixation, eliminating collision risk
- Uniform and consistent cleaning effect
- Suitable for workpieces requiring high surface precision
Applicable Industries: Gear processing, disc-shaped parts manufacturing, bearing ring processing
III. Common Selection Misconceptions
Misconception 1: Focusing only on price, ignoring long-term operating costs
The equipment purchase price is only part of the investment. Operating costs such as energy consumption, abrasive consumption, replacement of wearing parts, and maintenance labor are more substantial in the long run. It is recommended to consider all factors, rather than simply comparing prices.
Misconception 2: Blindly pursuing high configurations
Not all production scenarios require high-end configurations. Excessively high configurations may lead to resource waste and unnecessary costs. Choosing a suitable model based on actual needs is more reasonable.
Myth 3: Ignoring Factory Conditions
Some shot blasting machines (such as roller conveyor types) may require pit installation, and some models have height requirements for the factory. Before selecting a machine, it is recommended to confirm whether the site conditions meet the equipment installation requirements.
Myth 4: Underestimating the Importance of Auxiliary Systems
The performance of dust removal and separation systems directly affects equipment operating efficiency and environmental compliance. They should be given full consideration during selection, rather than being considered secondary configurations.
IV. Professional Advice: Let the Samples Speak for Themselves
Before making a final decision, the most reliable way is to provide your workpiece samples to the equipment supplier for trial operation. Trial operation allows you to:
- Verify whether the cleaning effect meets the expected standards
- Assess the risk of damage to the workpiece from the equipment
- Determine the production cycle and process parameters
- Observe the actual operational stability of the equipment
Conclusion
Choosing a shot blasting machine is essentially choosing a surface treatment solution that matches your production processes. By using the systematic selection method in this guide, combined with your own production characteristics and long-term development plans, you can ensure that the selected shot blasting machine meets current production needs while also possessing good adaptability and economy.
