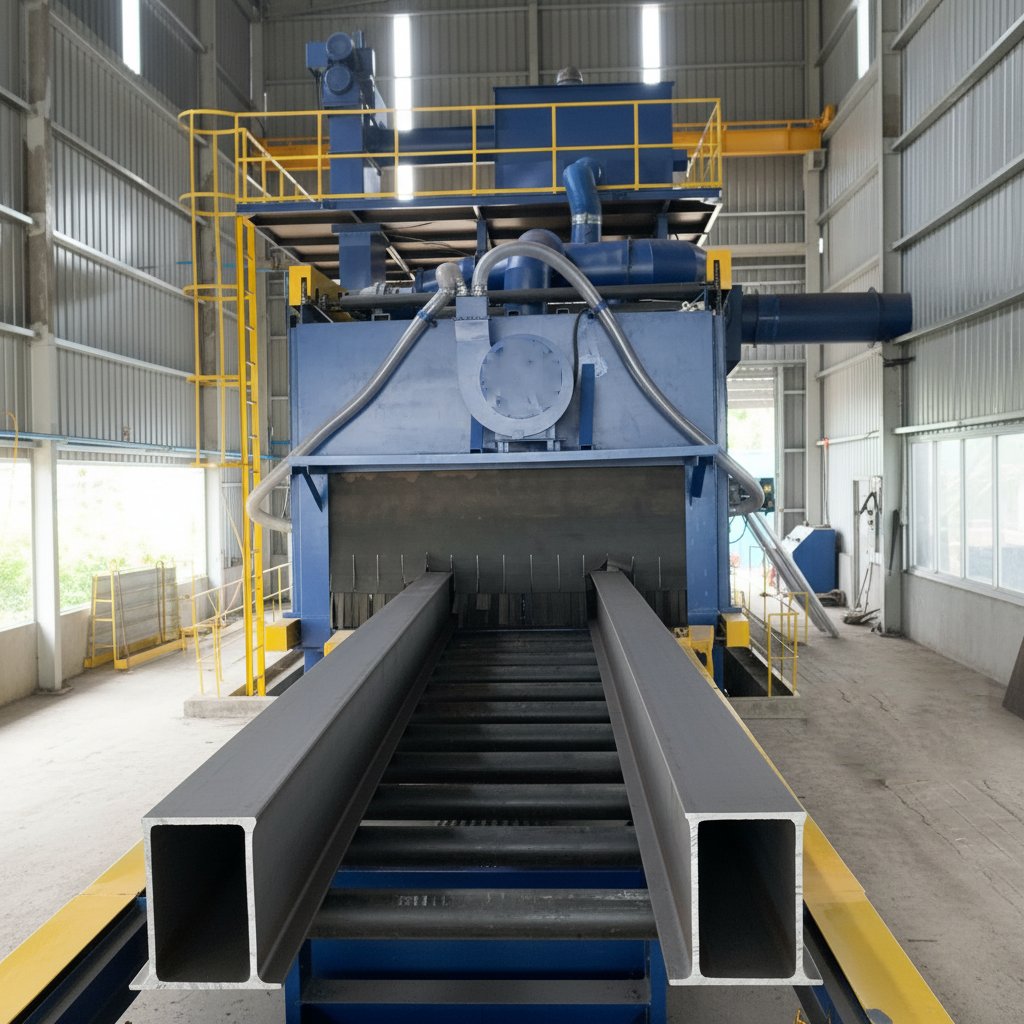

As a core piece of equipment in surface treatment, shot blasting machines operate in high-dust, high-intensity environments for extended periods, making some operational malfunctions inevitable. For maintenance personnel, quickly and accurately diagnosing the cause of the malfunction and taking effective measures is crucial to ensuring the continuous operation of the production line. The following is a Q&A format summarizing some of the most common shot blasting machine malfunctions and their solutions.
I. Shot Blasting Machine Related Malfunctions
**Q: The shot blasting machine vibrates excessively and makes abnormal noises. What could be the cause?**
**A:** The main causes may include:
- Uneven blade wear, leading to impeller dynamic imbalance
- Insufficient bearing lubrication or existing wear
- Foreign objects or shot buildup inside the blades
- Loose fastening bolts
**Solutions:**
- Inspect the blade wear. If obvious grooves or severe wear are present, the entire set should be replaced. When replacing blades, ensure consistent blade weight to maintain impeller balance.
- Check bearing temperature; it should not be hot to the touch under normal conditions. Regularly replenish with an appropriate amount of grease.
- After shutdown, clean the inside of the shot blaster, removing foreign objects and accumulated material.
- Check and tighten all connecting bolts.
**Q: What if the shot blasting volume is insufficient and the cleaning effect is unsatisfactory?**
**A:** Possible causes and troubleshooting steps are as follows:
**Step 1: Check shot level**
If the shot level in the hopper is low, replenish with qualified shot to the appropriate level.
**Step 2: Check the shot supply pipe**
Disassemble the shot supply pipe inspection port and clear any blockages with compressed air.
**Step 3: Check the shot blaster blades**
Check the blade thickness; if it is significantly thinned, replace it immediately. The weight difference between a set of blades should not be too large during replacement.
**Step 4: Check the shot distribution wheel and directional sleeve**
If the shot distribution wheel or directional sleeve is significantly worn, it needs to be replaced. A misaligned directional sleeve window position can also affect the blasting direction; adjust it to the correct position.
**Step 5: Adjusting the Shot Supply Valve Opening**
Adjust the shot supply valve opening according to actual needs; generally, setting it within an appropriate range is sufficient.
**Question:** The shot blasting direction is skewed, resulting in uneven cleaning. How to adjust?
**Answer:** This is usually caused by a misalignment of the directional sleeve window. Adjustment can be made using the "trial blasting marking method": Place white paper on the wall of the shot blasting chamber, observe the shot impact marks after starting the machine, and fine-tune the directional sleeve until the marks are concentrated in the area to be cleaned on the workpiece.
---
### II. Dust Collection System Faults
**Question:** Dust overflows from the dust collector's discharge port, failing to meet environmental standards. How to solve this?
**Answer:** Possible causes and solutions:
- **Excessive Dust Accumulation in the Filter Cartridge**: Check the differential pressure gauge. If the reading is high, clean or replace the filter cartridge. Compressed air can be used to blow clean from the inside out, or a pulse backflushing system can be used for cleaning.
- **Backflushing system malfunction:** Check if the pulse solenoid valve is working properly and if the compressed air pressure is stable to ensure the dust removal system is effective.
- **Incorrect fan rotation:** Check the fan wiring to ensure the correct rotation.
- **Poor sealing:** Check the dust collection chamber and pipe connections; if leaks are found, reseal.
**Q:** What causes the dust collector's differential pressure to remain consistently high?
**A:** A consistently high differential pressure usually indicates excessive dust accumulation on the filter cartridge surface, resulting in poor dust removal system performance. Possible causes include: pulse interval setting too long, insufficient backflushing pressure, or filter cartridges that have been used for too long and are no longer effective. It is recommended to adjust the pulse interval, check the compressed air pressure, and replace the filter cartridges if necessary.
**Q:** What should I do if the dust collector sucks up a large number of intact bullets?
**A:** This is usually caused by excessive airflow from the separator. Adjust the air outlet damper appropriately to reduce the airflow while maintaining dust removal efficiency. Also, check the position of the separator adjustment plate to ensure a uniform airflow and prevent bullets from being sucked into the dust collection system. ---
### III. Separator System Faults
**Q: The separator's separation effect is not ideal, and there are many impurities in the shot. What should I do?**
**A:** Possible causes and solutions:
- **Uneven flow curtain:** Adjust the flow control plate to ensure the flow curtain is evenly distributed.
- **Inappropriate air velocity in the separation zone:** Adjust the separator's air outlet butterfly valve to ensure the air velocity in the separation zone is within a suitable range.
- **Excessive or insufficient airflow:** Excessive airflow will draw away intact shot, while insufficient airflow will not effectively remove dust. Adjust the airflow regulating valve appropriately.
**Q:** The dust content in the returned shot is high, affecting the cleaning effect. How can this be resolved?
**A:** Check if the separator's screen is clogged and clean the impurities from the screen. Check if the separator's regulating plate is in the correct position to ensure the shot is thoroughly cleaned in the separation zone. Adjust the airflow if necessary to improve the separation effect.
---
### IV. Conveying System Faults
**Q:** The track or mesh belt is running off-center. How can this be adjusted? **
**A:** Deviation is usually caused by the following reasons:
- Uneven tension on both sides: Adjust the tension bolts to balance the tension on both sides.
- Damaged idlers: Replace deformed or damaged idlers.
- Foreign objects at the bottom: Clean accumulated material and foreign objects from the bottom of the conveyor system.
- Uneven wear of the rollers: Inspect the rollers; replace them if severely worn.
**Q:** What should I do if the bucket elevator is not running or is not running smoothly?
**A:** Possible causes and troubleshooting steps:
- Large particles stuck at the bottom: After stopping the machine, open the inspection port and clean out excessively large particles and foreign objects from the bottom of the elevator.
- Belt slippage: Adjust the drive wheel tensioning device to tighten the belt; replace it if the belt is broken.
- Excessive accumulation of shot at the bottom: Stop the machine in sequence, clean the accumulated material at the bottom, and check if the upstream equipment is feeding too quickly.
- Damaged bearings: Inspect the bearings; replace them if damaged.
**Q:** What causes the screw conveyor to not run?
**A:** Main causes include: shot blockage causing jamming; bent screw shaft; broken weld at the screw shaft head. Troubleshooting Methods: Stop the machine sequentially and remove accumulated material; correct the auger shaft or grind the outer diameter of the blades; re-weld the broken section.
---
### V. Electrical System Faults
**Q:** The equipment's start/stop action is not sensitive or does not follow the program. How to troubleshoot?
**A:** Possible causes and solutions:
- Damaged electrical components: Inspect and replace damaged components.
- Excessive dust inside the electrical box: Clean the dust inside the electrical box.
- Poor contactor contact: Inspect and grind the contacts, or replace the contactor.
- Dust accumulation on the time relay: Clean or replace the time relay.
It is recommended to check the PLC control cabinet wiring terminals monthly and clean the sensor probes to ensure normal signal transmission.
**Q:** What to do if the motor overheats or fails to start?
**A:** First, check if the motor wiring is correct and if the power supply voltage is stable. Second, check if the motor load is too high and if the shot blasting machine is stuck. Finally, check if the motor bearings are lacking lubrication or damaged, and if the motor cooling fan is working properly. If you cannot determine the cause yourself, it is recommended to contact a professional electrician or the manufacturer's technical support.
---
### VI. Sealing System Issues
**Q: Shot blasting chamber leaks shot, causing dust to escape. How to solve this?**
**A:** Check the following areas:
- Is the sealing strip aged or damaged? Replace it immediately if aged or damaged.
- Is the inspection door tightly closed? Adjust the door lock mechanism to ensure it is fully closed.
- Is the seal at each connecting flange intact? Retighten the bolts or replace the gasket.
- Is the observation window glass broken? Replace the glass and reseal.
**Q: Shot blasting machine gasket is punctured, causing shot leakage. What to do?**
**A:** Mechanical vibration may cause localized shot impact on the rubber gasket, resulting in gasket puncture. Polyurethane board can be used instead of rubber board as the gasket. Polyurethane board has high elasticity, excellent wear resistance and oil resistance, and performs well.
---
### VII. Maintenance and Management Recommendations
**Q:** What checks need to be performed during daily use? **
A:** We recommend establishing a daily, weekly, and monthly inspection system:
**Daily Inspection (approx. 5 minutes)**
- Check if the shot blasting machine has sufficient stock.
- Listen for any abnormal noises from the shot blaster.
- Check if the dust collector differential pressure reading is within the normal range.
- Observe if there are any significant changes in the cleaning effect.
**Weekly Inspection (approx. 30 minutes)**
- Check the wear of the shot blaster blades and directional sleeves.
- Clean impurities from the separator screen.
- Tighten all bolts.
- Check the condition of the sealing strips.
**Monthly Inspection (approx. 2 hours)**
- Check the dynamic balance of the shot blaster.
- Clean dust from the electrical cabinet.
- Check the tension of the elevator chain and lubricate it appropriately.
- Check the idler rollers and drums of the conveyor system.
**Quarterly Inspection (approx. half a day)**
- Test the shot specifications, screen out waste shot, and replenish with new shot.
- Thoroughly clean the dust collector filter media.
- Check the motor insulation performance and bearing condition.
**Q:** How to extend the service life of a shot blasting machine? **
**
**A:** The following points are worth noting:
- Establish a standardized preventative maintenance system and keep accurate equipment operation records.
- Replace worn parts promptly to prevent minor problems from escalating into major malfunctions.
- Keep equipment clean, especially critical components such as shot blasters and separators.
- Use equipment correctly according to the operation manual to avoid overloading.
- Have professional technicians conduct comprehensive inspections and maintenance regularly.
- Stock commonly used spare parts to reduce downtime due to malfunctions.
---
### VIII. Safety Reminders
**Q:** What safety precautions should be taken during maintenance?
**A:** The following points must be observed:
- Before performing any maintenance operations, always disconnect the main power supply and display a "Do Not Operate" warning sign.
- When working inside equipment, wear a safety helmet, goggles, and a dust mask.
- Use appropriate lifting equipment when replacing heavy components; manual handling is prohibited.
- After maintenance, it is recommended to run the equipment under no-load for a period of time to confirm there are no abnormalities before putting it into production.
- Electrical maintenance should be performed by a certified electrician.
