In the field of surface treatment, shot blasting machines are among the most widely used equipment. However, many users are confused when selecting a machine due to the variety of types, such as crawler, hook, roller, and mesh belt machines. Choosing the wrong machine not only affects production efficiency but may also damage the workpiece. This article provides a systematic selection approach from three dimensions: workpiece characteristics, production needs, and equipment features.
I. Three Core Questions to Clarify Before Selection
Before understanding specific machine models, it is recommended to answer the following three questions:
What are the characteristics of the workpiece?
The size, shape, weight, and material of the workpiece directly affect the choice of equipment type. Small loose parts, medium-sized complex parts, and long profiles require completely different equipment. In terms of material, cast iron, cast steel, and aluminum alloys also have different requirements for shot blasting parameters.
What are the process objectives?
Is it only to remove oxide scale and rust, or is surface strengthening also required? If only cleaning is needed, crawler or roller machines are sufficient; if improving the fatigue strength of the workpiece is required, a model with strengthening capabilities, such as a hook machine, needs to be selected. What are the production requirements?
What is the daily or shift throughput? Is it necessary to connect with upstream and downstream processes? Are there any special restrictions on factory space and height? These factors determine the equipment specifications and level of automation.
II. Characteristics and Applicable Scenarios of Five Common Shot Blasting Machines
1. Tracked Shot Blasting Machine
Working Principle: The workpiece is loaded into the tracked drum. The track rolls, causing the workpiece to tumble continuously, while the shot blaster projects the shot from above.
Applicable Workpieces:
- Small castings, forgings, stampings
- Fasteners (bolts, nuts, washers)
- Springs, small gears
- Hardware tools, die castings
Core Advantages:
- High batch processing efficiency, capable of loading hundreds of kilograms of small workpieces at a time
- Compact structure, small footprint
- Relatively low procurement cost
Applicable Industries: Foundries, automotive parts, hardware products, standard parts production

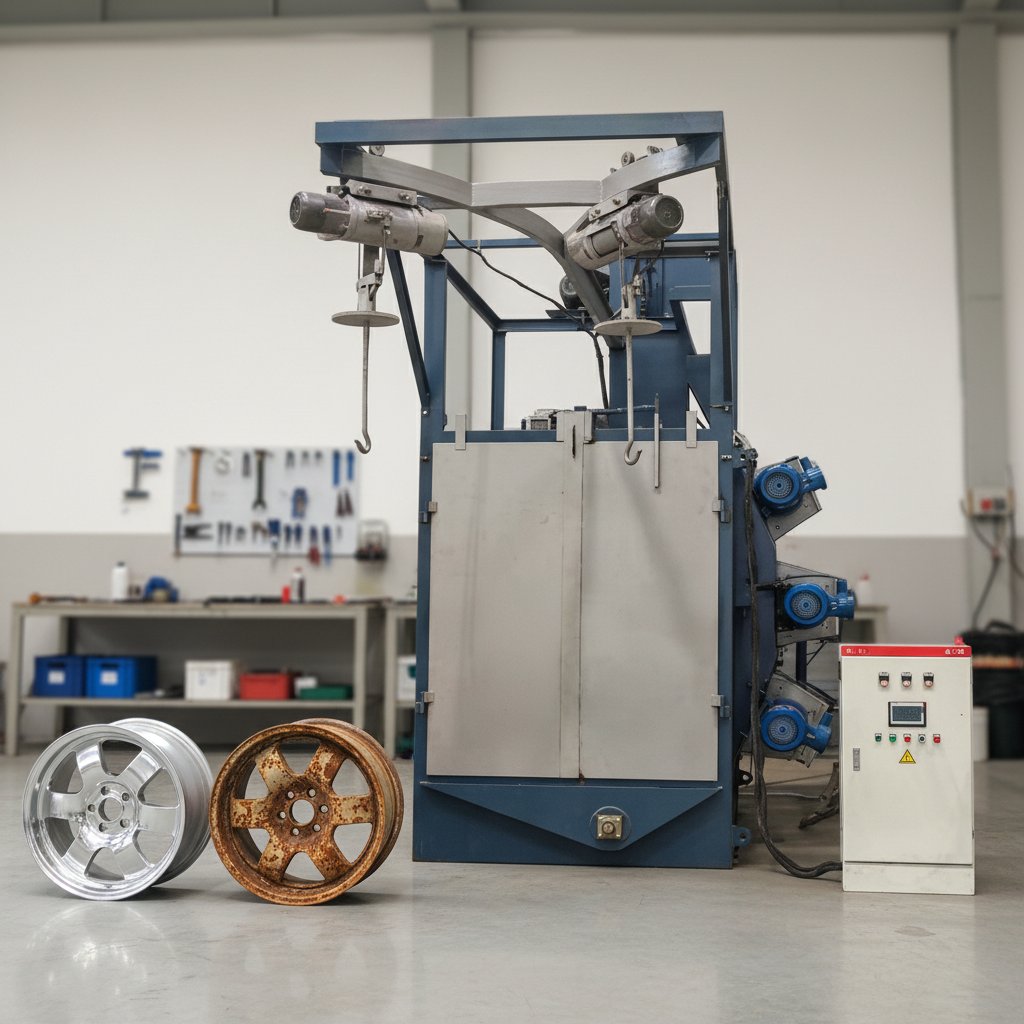

2. Hook-type Shot Blasting Machine
Working Principle: The workpiece is suspended on a hook, fed into the shot blasting chamber, and rotates at a uniform speed. The shot blaster propels the workpiece from multiple directions.
Applicable Workpieces:
- Engine blocks, cylinder heads, gearbox housings
- Crankshafts, connecting rods, gears, wheel hubs
- Large castings, forgings, welded structural parts
- Pump bodies, valve bodies, impellers
Core Advantages:
- Independent workpiece suspension, no collision risk
- Rotary cleaning covers both outer surfaces and internal cavities
- Suitable for complex-shaped workpieces susceptible to impact damage
Applicable Industries: Automotive manufacturing, construction machinery, valve manufacturing, aerospace
3. Roller Conveyor Shot Blasting Machine
Working Principle: The workpiece is carried by a roller conveyor system and passes through the shot blasting chamber at a uniform speed, receiving shot blasting during its journey.
Applicable Workpieces:
- Steel plates, H-beams, I-beams, channel steel, angle steel
- Round pipes, square pipes, rectangular pipes
- Welded structural components, embedded parts
Core Advantages:
- Continuous through-process operation, high efficiency
- Can be connected to upstream and downstream processes to form an automated production line
- Suitable for batch processing of long workpieces
Applicable Industries: Steel structure processing, bridge manufacturing, shipbuilding and repair, pipeline pretreatment
4. Mesh Belt Shot Blasting Machine
Working Principle: The workpiece is laid flat on a metal mesh belt and passes through the shot blasting chamber at a uniform speed, without tumbling or collision.
Applicable Workpieces:
- Thin-walled castings, thin-walled stampings
- Spring plates, brake pads, clutch plates
- Electronic component housings, heat sinks
- Aluminum templates, aluminum alloy die castings
Core Advantages:
- Smooth processing, not easily deformed
- Suitable for thin-walled parts that are susceptible to impact and deformation
- Continuous operation is possible, with higher efficiency than hook-type machines
Applicable Industries: Automotive parts, electronic components, aluminum alloy die casting, hardware products
5. Rotary Table Shot Blasting Machine
Working Principle: The workpiece is fixed on a rotating worktable, and the shot blaster propels the shot from above downwards or from the side.
Applicable Workpieces:
- Gears, brake discs, flywheels, flanges
- Bearing rings, clutch plates
Core Advantages:
- Fixed workpieces, no risk of collision
- Uniform cleaning, suitable for workpieces with high surface precision requirements
Applicable Industries: Gear processing, disc parts manufacturing, bearing manufacturing
III. Selection Decision Reference
| Workpiece Characteristics | Recommended Model | Main Reasons |
|:---|:---|:---|
| Small loose parts, large batches, not afraid of impact | Tracked shot blasting machine | High efficiency, low cost |
| Large and medium-sized parts, complex shapes, susceptible to impact | Hook-type shot blasting machine | No dead angles, protects workpieces |
| Long plates, structural steel, steel pipes | Roller conveyor shot blasting machine | Continuous operation, high efficiency |
| Thin-walled, easily deformed, susceptible to impact | Mesh belt shot blasting machine | Stable conveying, no deformation |
| Disc-shaped, ring-shaped workpieces | Rotary Table Shot Blasting Machine | Fixed Cleaning, Good Uniformity |
IV. Common Misconceptions in Selection
Price Alone, Ignoring Operating Costs
The purchase price of equipment is only part of the investment. Operating costs such as energy consumption, abrasive consumption, replacement of wearing parts, and maintenance labor often exceed the price of the equipment itself in the long run. It is recommended to obtain approximate operating cost data from the manufacturer while comparing prices.
Blindly Pursuing High Configurations
Not all production scenarios require high-end configurations. Excessive configurations may lead to resource waste. Choosing a model suitable for actual needs is more reasonable.
Ignoring Plant Conditions
Some equipment (such as roller conveyors) requires pit installation, and some models have height requirements for the plant. It is recommended to confirm whether the site conditions meet the installation requirements before selection.
Underestimating the Importance of Auxiliary Systems
The performance of dust removal and separation systems directly affects equipment operating efficiency and environmental compliance. They should be given full consideration during selection, rather than being regarded as secondary configurations.
V. Selection Recommendations and Precautions
Provide Workpiece for Trial Run
Before making a decision, it is recommended to send workpiece samples to the equipment manufacturer for trial run. Trial run allows verification of cleaning effectiveness, assessment of potential damage to the workpiece, and determination of appropriate process parameters.
Assess Manufacturer Strength
Understand the manufacturer's establishment year, industry experience, certifications (such as CE, ISO), and after-sales service capabilities. If possible, it is recommended to visit the factory in person to understand production and management levels.
Confirm Delivery and Installation Cycle
Clarify the equipment delivery date, installation and commissioning cycle, and on-site training arrangements. For projects with time-sensitive production capacity requirements, advance planning is necessary.
Clarify Warranty and After-Sales Terms
When signing the contract, clearly define the warranty scope, duration, and after-sales response time. Understand the supply price and delivery cycle of vulnerable parts.
VI. Summary
There is no standard answer to selecting a shot blasting machine; the key is to match it with your workpiece characteristics, production needs, and site conditions. Small, loose parts are suitable for tracked conveyors; complex, large workpieces are suitable for hook-type conveyors; long, profiled steel plates are suitable for roller conveyors; and thin-walled, easily deformable workpieces are suitable for mesh belt conveyors.
It is recommended to communicate thoroughly with the equipment manufacturer before purchasing, providing workpiece drawings or samples for testing, and determining the final solution based on actual results. If you have any questions, please contact our technical team for free selection consultation.
