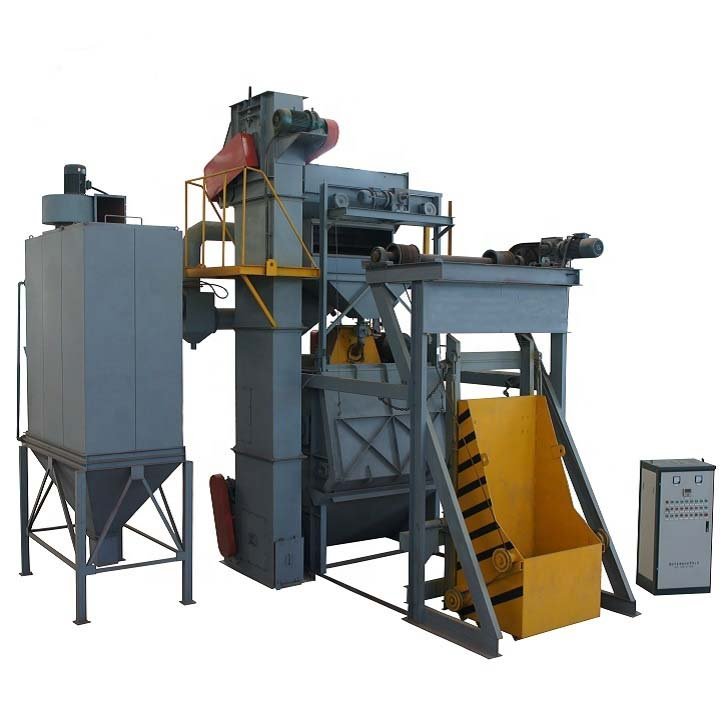

1.Introduction of  15/28GN Steel Track Shot Blasting Machine

This series is used for surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces. Q32 Series tumble belt shot blasting machine has advantages of advanced design,reasonable structure,low energy consumption and high efficiency.

In addition, it can be upgraded to the GN series metal crawler shot blasting machine, with automatic loading and unloading, which is used to remove the sticky sand, rust layer, oxide scale and burrs on the surface of castings, forgings, stampings and other workpieces that are easy to roll and fall, non-brittle parts that are not easy to collide, and castings with shallow cores. The main users are machine tool factories, automobile factories, textile machinery factories, heat treatment workshops, steel casting workshops and stamping workshops. Because the shot blasting machine of this model has good protection measures and strong shot blasting performance, it can also clean hard-to-clean workpieces with satisfactory results.

2. Specification of 15/28GN Steel Track Shot Blasting Machine

We can design and manufacture all kinds of non-standard tumble blast machine according to customer different workpiece detail requirement,weight and productivity.

2. Details of tumble blast machine

These pictures will better help you understand tumble blast machine.

3. Certification of 15/28GN Steel Track Shot Blasting Machine

Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.

Our company have passed CE, ISO certificates. As a result of our high-quality, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.

6.FAQ

"1. What is the delivery time?

20-40 working day, based on factory’s production order conditions.

2. How to installation tumble blast machine?

We supply overseas service, engineer can go to your place guide installation and debugging.

3. What size machine suit for us?

We design machine following your request, usually based on your workpiece size, weight and efficiency.

4. How to control the quality of tumble blast machine?

One year warranty,and 10 teams QC to check every part from drawing to machine finished.

5. What work part can clean by tumble blast machine?

surface cleaning,rust removing,product intensifying for all kinds of medium and small casting,forging and machinings.It is suitable for different process scale,can work single or medium and small sizes workpieces.

6. What type abrasive used?

 0.8-1.2 mm size wire cast steel shot

7. How it control for whole work?

PLC control, setup safety interlock device between system

◆If the examining door is open, the impeller heads won’t start.

◆If the cover of impeller head is open, the impeller head won’t start.

◆If the impeller heads doesn’t work, the shots valves won’t work.

◆If the separator won’t work, the elevator won’t work.

◆If the elevator won’t work, the screw conveyor won’t work.

◆If the screw conveyor won’t work, the shots valve won’t work.

◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.

8. What is the clean speed:

 Can be customized,usually 0.5-1.5 m/min

9. What clean grade?

Sa2.5 metal luster

Our service:

1.Machine guarantee one year except damage by human wrong operation caused.

2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists...

3.We can go to your factory to guiding installation and train your stuff."

If you are interested in tumble blast machine, you are welcome to contact us.
