As the core equipment for surface treatment, the selection of a shot blasting machine directly affects product quality, production efficiency, and operating costs. The right machine not only ensures that workpieces meet surface treatment standards but also optimizes energy consumption, reduces maintenance costs, and extends equipment service life. However, faced with various types of machines on the market—such as tumble belt, hook type, and roller conveyor—many buyers feel confused. This article will help you find the optimal solution through systematic selection logic.
Before considering any equipment, you must first clarify your workpiece characteristics. Just as a doctor needs to understand symptoms before diagnosis, this is the foundation of selection.
Workpiece size determines the minimum effective size of the cleaning chamber, and the maximum weight per piece affects the load capacity design of the conveying system. Whether the workpiece has deep holes, cavities, or dead corners determines whether multi-angle blasting design is needed. The material—whether cast iron, cast steel, aluminum alloy, or others—directly affects blasting intensity and abrasive selection. Whether the workpiece is prone to damage and whether surface precision requirements are high determines if processing methods that avoid part-on-part contact are needed.
The core principle is that selection must be based on workpiece characteristics, not simply on budget or habits.

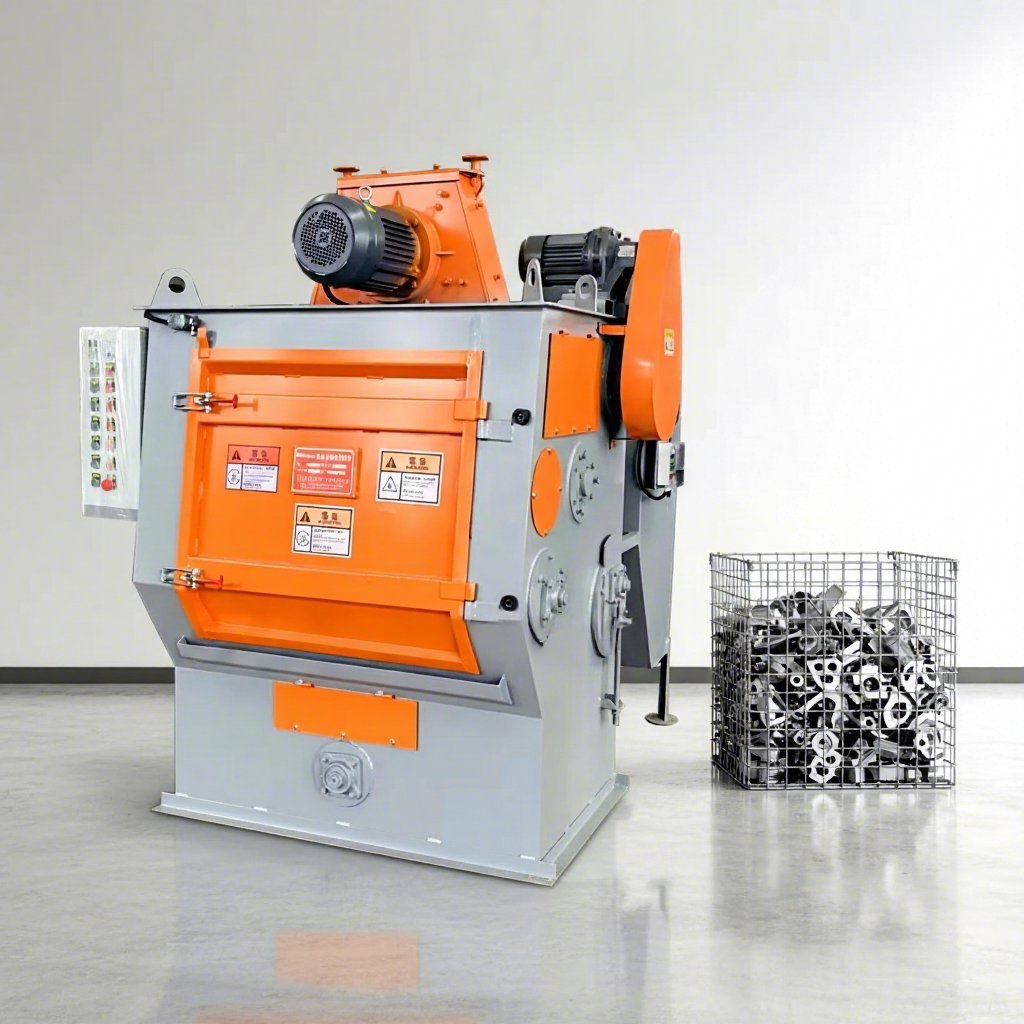

The tumble belt shot blasting machine works by placing workpieces on a belt that can rotate forward and backward. During operation, the belt rolls, causing the workpieces to tumble continuously in the cleaning chamber while receiving impact from abrasive thrown by the blast wheel from above.
This type is best suited for small, high-volume castings, forgings, and hardware parts that are not prone to damage from light impact, such as screws, nuts, stamped gaskets, small hardware tools, and small castings. Single piece weight is typically less than 30 kilograms.
Its core advantages include high batch processing efficiency, allowing large quantities of small workpieces to be processed at once. All surfaces of tumbling workpieces are evenly cleaned. Among all types of shot blasting machines, tumble belt machines offer the best cost-performance ratio. The compact structure has a small footprint, making it suitable for workshops with limited space.
Limitations include being unsuitable for easily deformed, ultra-thin parts, or those with precision threads, as violent tumbling may cause damage or deformation. It is also unsuitable for particularly long pipes due to the machine's internal dimensions. Typical applications include foundries, automotive parts manufacturing, and hardware products industry.
The hook type shot blasting machine works by hanging workpieces on special hooks, which carry them into the cleaning chamber while rotating to receive comprehensive impact from blast wheels.
This type is best suited for large and medium-sized, complex, and delicate workpieces such as engine cylinder blocks, transmission housings, gears, crankshafts, and wheel hubs. It is also suitable for pipes, forgings, and stamping parts that are prone to damage.
Core advantages include excellent treatment effect, with all surfaces of rotating workpieces cleaned thoroughly without dead angles. Workpieces are hung independently, preventing mutual contact—ideal for workpieces with high surface quality requirements. High flexibility allows handling workpieces of different shapes and sizes by adjusting hanging density. It is particularly suitable for simultaneous internal and external cleaning of pipes.
Limitations include requiring manual or auxiliary equipment for hanging, which may involve greater labor intensity. Single batch capacity depends on the number of hooks and hanging density. Equipment cost is higher but durability is strong. It requires cranes or gantries, with factory height requirements generally needing to be 5 meters or more. Typical applications include automotive manufacturing, construction machinery, large motors, wind power equipment, and comprehensive maintenance workshops.

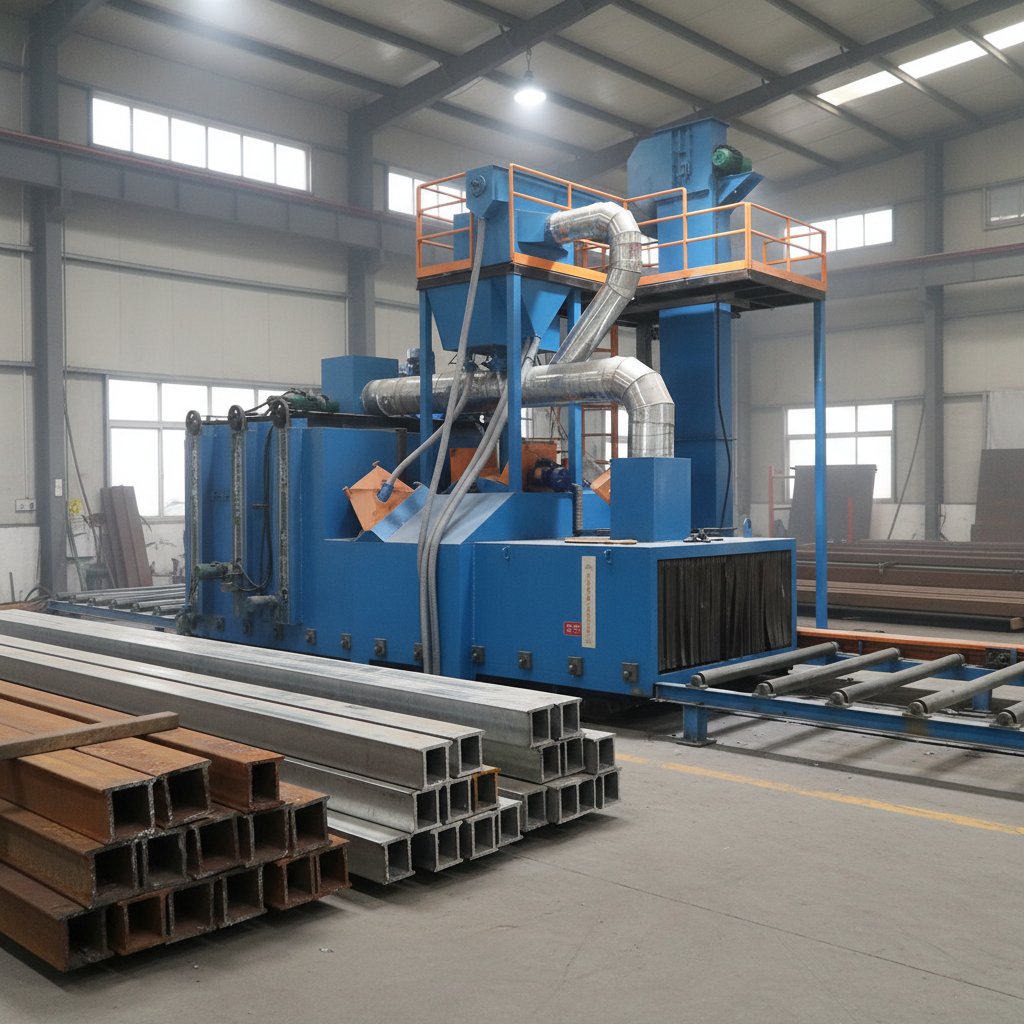

The roller conveyor shot blasting machine works by carrying workpieces on a roller conveyor system that passes through the blasting zone at a constant speed, receiving continuous impact from blast wheels.
This type is best suited for long-size plates and profiles such as H-beams, I-beams, steel pipes, as well as steel plates, structural steel components, and welded structures.
