In the field of metal surface treatment, shot blasting machines and sandblasting machines are two of the most common pieces of equipment. However, many purchasers and even industry professionals often confuse the two. Although they both seem to be for "cleaning" surfaces, there are fundamental differences in their working principles and final effects. Choosing the wrong equipment can not only lead to substandard processes but also cause unnecessary cost waste.
This article will explain the core differences between shot blasting and sandblasting in the clearest way possible and tell you how to choose in actual production.
This is the most fundamental difference between the two.

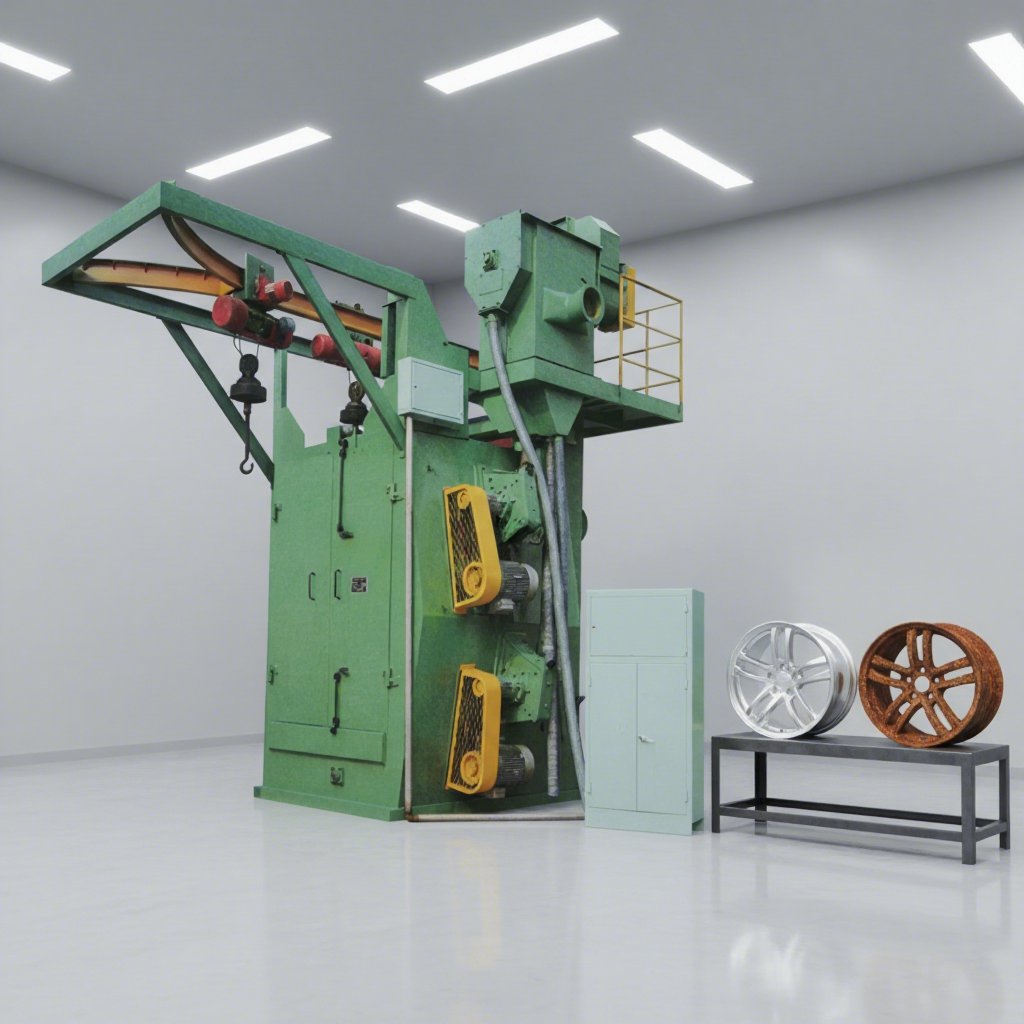

The core of a shot blasting machine is "throwing." It uses a high-speed rotating impeller (shot blaster) to propel abrasive materials such as steel shot and steel grit at high speed onto the workpiece surface using centrifugal force. This process is similar to a dense "metal storm," with a large impact force and uniform coverage.
The core of a sandblasting machine is "spraying." It relies on compressed air as power to propel abrasive materials (quartz sand, brown corundum, glass beads, etc.) at high speed through nozzles onto the workpiece surface. This process is closer to "scraping," relying on the cutting action of the abrasive to complete the cleaning.
In simple terms: shot blasting is like "throwing it out to smash," while sandblasting is like "blowing it out to clean it."
This is the most critical decision point when choosing equipment.
Shot blasting not only removes oxide scale, rust, and old coatings, but more importantly, it forms a compressive stress layer on the metal surface. This invisible "strengthening layer" can significantly improve the fatigue strength of parts, extending their service life by several times or even tens of times. Therefore, shot blasting is both a "cleaner" and a "strengthener."
Sandblasting mainly completes surface cleaning and roughening. It effectively removes contaminants and creates a certain roughness (anchor pattern), enhancing coating adhesion. However, it does not have a strengthening function and does not change the mechanical properties of the metal.
Simple judgment:
If your workpiece needs to improve fatigue life (such as gears, springs, crankshafts), you must choose shot blasting.
If your goal is surface cleaning and preparation for painting, either method is acceptable, but other factors should be considered when choosing.
Shot blasting machines have the advantage of low long-term costs. Although the initial investment is higher, the abrasive (steel shot) can be recycled thousands of times, resulting in low per-piece processing costs. They are highly automated and suitable for large-volume, assembly line operations.
Sandblasting machines have the advantage of low initial investment. The equipment price is relatively low, and they offer high flexibility, making them suitable for small-batch, multi-variety production. However, the abrasive is consumed quickly (mostly for single use), and long-term operating costs cannot be ignored.
Efficiency Comparison:
Shot blasting: High efficiency, low cost, suitable for large-scale production
Sandblasting: High flexibility, low entry cost, suitable for diversified small orders
Modern shot blasting machines are mostly enclosed designs, equipped with efficient dust removal systems, resulting in good dust control. Although noise is high, it is manageable, and overall environmental performance is high.
Sandblasting operations (especially dry blasting) generate a lot of dust, requiring higher standards for the operating environment and environmental protection facilities. Open-type sandblasting requires strict protective measures.
Consideration Dimensions: Prioritize Shot Blasting; Prioritize Sandblasting
Process Objectives: Surface strengthening and improved fatigue life required; Cleaning, roughening, and deburring only required.
Workpiece Types: Large batches, standard parts, critical components; Small batches, irregularly shaped parts, complex curved surfaces.
Material Requirements: Primarily metal parts requiring strengthening effect; Metal, glass, stone, and wood are all acceptable.
Cost Considerations: Long-term operating costs are prioritized; Initial investment is sensitive, flexible production is required.
Environmental Requirements: Enclosed workshop with strict dust control; Open area, localized operations.
Case 1: An auto parts factory originally used sandblasting to clean gearbox gears. While it met cleaning requirements, early gear fatigue failure was frequent. After switching to shot blasting, not only was the cleaning effect better, but surface strengthening also increased gear life by 300%, and customer complaints dropped to zero.
Case 2: A steel structure processing company used shot blasting machines to process large H-beams. Due to the excessive length of the workpieces, customized equipment was required, resulting in a significant investment. Post-assessment revealed that the annual output was insufficient to offset equipment costs. Ultimately, a large-scale sandblasting booth solution was chosen, flexibly meeting diverse order demands and optimizing return on investment.
These two cases illustrate that there is no absolutely perfect equipment, only the most suitable solution.
We recommend that you:
Define your core needs: First, ask yourself, do I need "cleaning" or "strengthening"?
Provide sample testing: Have a professional manufacturer conduct trial blasting experiments for you, letting the data speak for itself.
Calculate the total cost: Don't just look at the purchase price; calculate energy consumption, abrasive consumption, maintenance costs, and production capacity value.
About Us As a source factory with over 20 years of experience in shot blasting machine manufacturing, we not only provide a full range of shot blasting equipment (tracked, hook-type, roller conveyor, and rotary table types), but also dedicate ourselves to providing customers with free process verification and solution design. No matter what kind of workpiece or process requirements you face, our engineering team can tailor the optimal solution for you.
