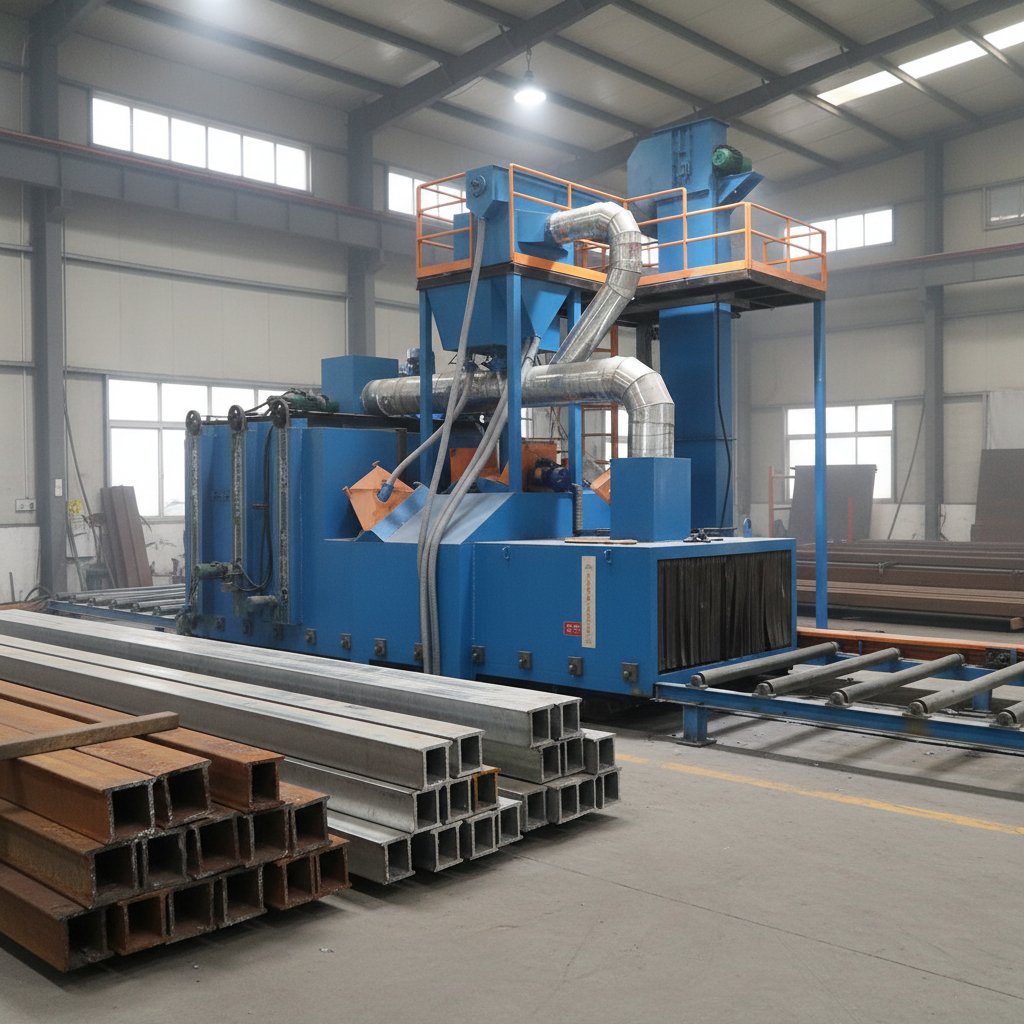

During operation, shot blasting machines generate a significant amount of dust; the dust collection system is a critical component for ensuring the equipment meets environmental standards and maintaining a clean workshop environment. However, in practical use, dust collection systems frequently encounter various issues. This article compiles the most common fault phenomena and troubleshooting methods for shot blasting machine dust collection systems, serving as a reference for equipment maintenance personnel.
**I. Excessive Pressure Differential in the Dust Collector**
**Q: What causes an excessive pressure differential in the dust collector?**
**A:** The pressure differential between the inlet and outlet of the dust collector is a key indicator of the degree of clogging in the filter media. An excessive pressure differential is typically caused by the following factors:
Excessive dust accumulation on the surface of the filter cartridges or bags, resulting in ineffective pulse-jet cleaning. Insufficient compressed air pressure, leading to inadequate cleaning force. Malfunctioning pulse valves that fail to open or close properly. Filter media that has exceeded its service life and is no longer effective.
**Q: How can the issue of excessive pressure differential be resolved?**
**A:** You can troubleshoot the issue by following these steps:
Check whether the compressed air pressure remains stable within the normal range; adjust the pressure to the value specified by the equipment requirements. Verify that the pulse solenoid valves are functioning correctly; if any are damaged, replace them immediately. Manually activate the pulse-jet cleaning system and observe the cleaning effectiveness. If the pressure differential remains high after cleaning, you must shut down the machine to manually clean or replace the filter media. For severely clogged filter cartridges, it is recommended to replace them entirely.
**II. Dust Escaping from the Shot Blasting Chamber**
**Q: What causes dust to escape through the door gaps or observation windows of the shot blasting chamber?**
**A:** Dust leakage typically indicates either insufficient suction capacity in the dust collection system or poor sealing of the shot blasting chamber. Common causes include:
Misalignment of the exhaust air damper, resulting in insufficient airflow. Clogged filter media in the dust collector, leading to a reduction in the fan's suction power. Aging or damaged sealing strips on the shot blasting chamber. Clogged or damaged dust collection ducts.
**Q: How can the issue of dust leakage be resolved?**
**A:** You can troubleshoot the issue by following these steps:
Check the position of the exhaust air damper and adjust it to the appropriate opening angle. Monitor the pressure differential across the dust collector; if it is elevated, address the issue using the methods described in the previous section. Inspect the sealing strips on the shot blasting chamber door and observation windows; if they show signs of aging or damage, replace them immediately. Inspect the dust collection ducts; clear any blockages and repair any damaged sections. Verify that the fan is operating normally and check for any loose drive belts.
## III. Visible Dust at the Dust Collector Outlet
**Q: What causes visible dust to be discharged from the dust collector's chimney outlet?**
A: The presence of visible dust at the outlet indicates a decline in the dust collector's filtration efficiency. Common causes include:
Damaged filter cartridges or bags, allowing dust to escape directly through the damaged areas. Improperly installed filter media, resulting in bypass leakage. Air leaks in the dust collector housing or ductwork, causing dust-laden gas to bypass the filtration system. Improper selection of the dust collector model, resulting in an excessively high filtration velocity.
**Q: How can the issue of dust emissions at the outlet be resolved?**
A: You can troubleshoot the problem by following these steps:
Shut down the unit, open the dust collector's inspection door, and check the filter cartridges or bags for any damage. Immediately replace any damaged filter media found. Inspect the installation and sealing of the filter media to ensure there are no bypass leaks. Check the dust collector housing welds and inspection door seals for air leaks; promptly re-weld or replace the sealing strips as needed. If the issue persists after ruling out the above problems, it may be necessary to evaluate whether the dust collector model selected is undersized for the application.
## IV. Pulse Jet Cleaning System Failure
**Q: What causes the pulse jet cleaning system to fail to actuate or to perform poorly in dust removal?**
A: The pulse jet cleaning system is the core dust-removal mechanism in cartridge-type dust collectors; common causes for its malfunction include:
Insufficient compressed air pressure or a disconnected air supply. A faulty pulse controller or incorrect parameter settings. A burnt-out solenoid coil or a damaged diaphragm within the pulse solenoid valve. Blockages or air leaks in the pulse jet piping.
**Q: How can malfunctions in the pulse jet cleaning system be resolved?**
A: You can troubleshoot the problem by following these steps:
Check the pressure in the main compressed air line to confirm that the air supply is connected and the pressure is within the normal range. Check the pulse controller to verify that it is generating an output signal and that the parameter settings are correct. Use a multimeter to check the solenoid valve coil for continuity; if an open circuit is detected, replace the solenoid valve. Disassemble the solenoid valve to inspect the diaphragm for integrity; replace the diaphragm if it is damaged. Check whether the blow-back lines are unobstructed and if the nozzles are clogged.
## V. Excessive Dust Accumulation in the Dust Collector Hopper
**Q: What are the consequences of excessive dust accumulation in the dust collector hopper?**
A: Excessive dust accumulation in the hopper can lead to several issues:
The accumulated dust may clog the hopper outlet, hindering normal dust discharge. Excessive dust accumulation increases the load on the dust collector, thereby compromising dust removal efficiency. Furthermore, if the dust is combustible, excessive accumulation poses a significant safety hazard. If left uncleaned for extended periods, the accumulated dust may cake or harden, making subsequent cleaning efforts much more difficult.
**Q: How should dust discharge from the hopper be managed?**
A: It is recommended to establish a routine dust discharge schedule:
Determine the frequency of dust discharge based on the rate of dust generation; typically, this is performed once a week or once a month. During discharge, observe the physical characteristics of the dust; if any anomalies are noted (e.g., dampness, caking), investigate to identify the underlying cause. After discharging, verify that the dust discharge valve has closed tightly. Collected dust must be classified and disposed of in strict compliance with environmental regulations; it must not be discarded indiscriminately.
## VI. Daily Maintenance Recommendations for the Dust Collection System
**Daily Checks**
Monitor the differential pressure readings to ensure they remain within the normal operating range; observe the exhaust outlet for any visible dust emissions; and verify that the compressed air pressure remains stable.
**Weekly Maintenance**
Check that the pulse solenoid valves are functioning correctly; clear accumulated dust from the hopper; and inspect all pipeline connections for air leaks.
**Monthly Maintenance**
Inspect the filter media for any signs of damage or clogging; check the tension of the fan drive belts; and clean any dust accumulation from the fan impeller.
**Quarterly Maintenance**
Replace any filter media that shows signs of severe wear or damage; conduct a comprehensive inspection of the dust collector housing for corrosion; and calibrate the differential pressure gauges and pressure gauges.
## VII. Safety Precautions
When performing internal inspections of the dust collector or replacing filter media, it is mandatory to cut off the power supply and affix appropriate warning signs. Personnel entering the interior of the dust collector to perform work must wear protective masks and safety goggles. When cleaning dust, prioritize fire and explosion prevention measures; specifically, when handling dust composed of aluminum or magnesium alloys, strict explosion-proof protocols must be implemented. Upon completion of all maintenance and repair work, verify that all access doors and inspection ports are securely closed before restarting the equipment. ## VIII. Summary
Common faults in shot blasting machine dust collection systems primarily fall into five categories: excessive differential pressure, dust leakage, emissions exceeding regulatory limits, malfunctions in the pulse-jet cleaning system, and dust accumulation in the hopper. Establishing a routine inspection and periodic maintenance regimen allows for the timely detection and resolution of these issues, thereby ensuring the long-term, stable operation of the dust collection system. Should you encounter a fault that cannot be resolved internally, it is recommended that you promptly contact the equipment supplier's technical support team.
