Beam Steel

For the surface treatment of steel structure materials such as steel plates, steel beams, steel beams, steel columns, etc., we recommend using a through-type shot blasting machine. Through shot blasting, it can improve the metal's fatigue resistance, corrosion resistance, rust resistance, and wear resistance. It can also remove impurities such as rust and grease on the metal surface and increase the adhesion of spray paint.

Steel structure through shot blasting machine is not only suitable for steel structure, but also suitable for steel pipe, metal structure machine tool, steel (cast iron) products, grating, construction machinery, bridge manufacturing and other industries.

The steel structure through-type shot blasting machine adopts a roller conveying device to feed the workpiece into the cleaning room to complete automatic cleaning. The conveying speed can be adjusted according to the requirements of the workpiece and can be operated by humans. Compared with the traditional manual operation, the appearance of the steel structure through the shot blasting machine saves labor costs and improves work efficiency and cleaning quality.


118

After the shot blasting operation of the shot blasting machine is completed, the steel shot and impurities enter the bottom screw system, and then screw from the bottom to the bucket elevator, and the blasting mixture is lifted to the separator to separate the dust and impurities. Steel balls and dust enter the dust removal system for dust removal and centralized treatment. The impurities enter the filter and flow into the waste barrel through the waste pipe. High-quality steel shot blasting flows into the shot blasting machine for recycling and can be reused. The dust removal effect can be achieved.. Effectively protect the working environment.


General technical parameters

Type

Q69(customizable)
Minimum

Maximum

The effective cleaning width(mm)

800

4000

The room feed-in size(mm)

1000*400

4200*400

The length of cleaning workpiece(mm)

1200

12000

The speed of wheel conveyer(m/min)

0.5

4

The thicksness of cleaning steelsheet(mm)

3-100

4.4-100

The section steel specification(mm)

800*300

4000*300

The quantity of shot blasting(kg/min)

4*180

8*360

The first enclosed quantity(kg)

4000

11000

Roll brush adjusting height(mm)

200

900

Airness capacity(m³/h)

22000

38000

Exterior size(mm)

25014*4500*9015(customizable)

Total power(except for dust cleaning)(kw)

90

293.6


About Us

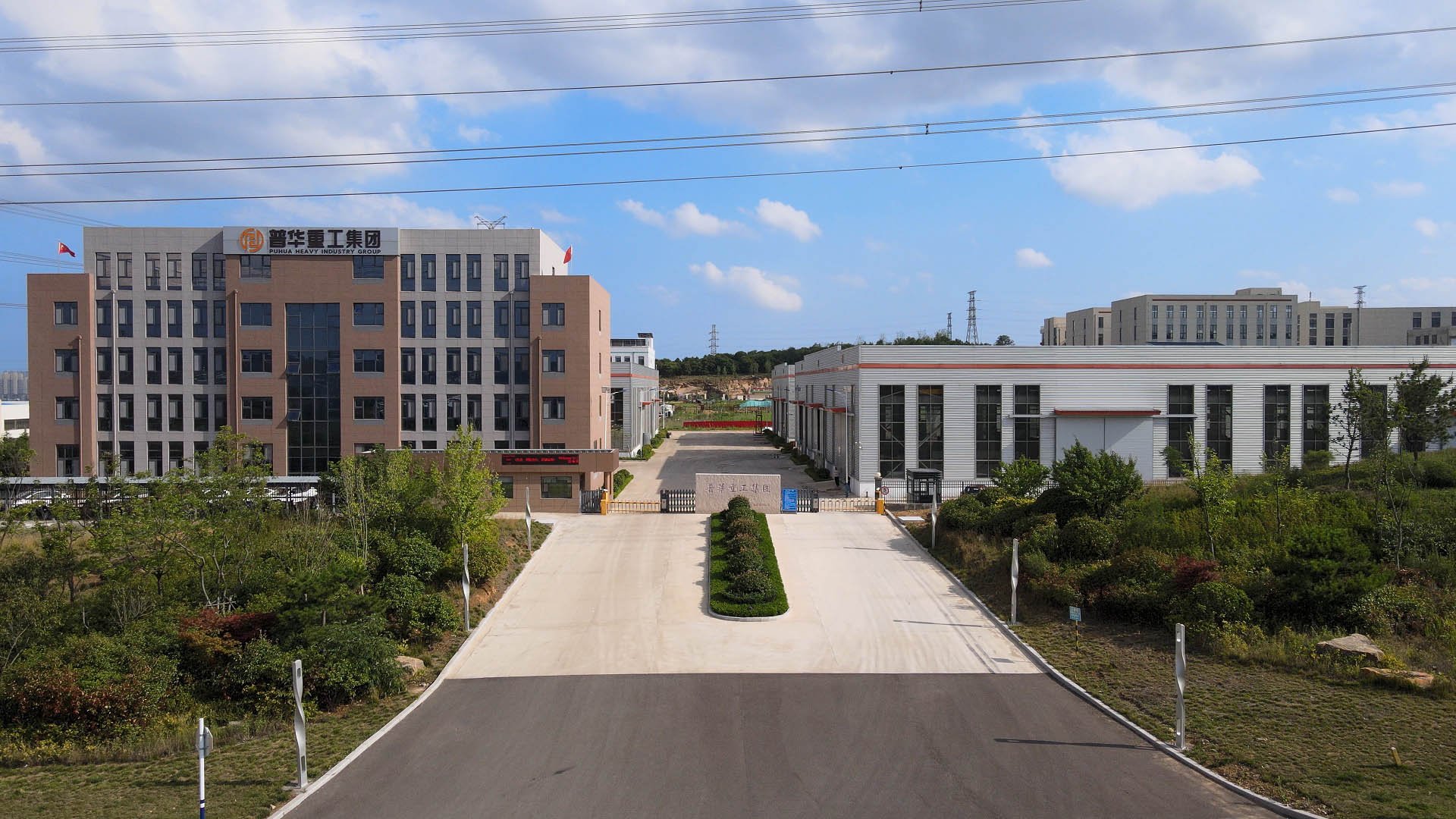

Qingdao Puhua Heavy Industry Group was established in 2006 with a total registered capital of more than 8.5 million US dollars and a total area of nearly 50,000 square meters.

We are a professional factory with 15 years of experience in producing shot blasting machines. We can design and manufacture all kinds of non-standard steel plate shot blasting machines according to customers' different detailed requirements of workpieces, weight and productivity. Produce the most suitable shot blasting machine for you and improve your production efficiency.


We provide services to customers in more than 90 countries, this is part of our case

We have large-scale laser cutting machines, plate shears and other equipment, and a complete production quality inspection process.
